Side Engine Mount Bracket Replacement

  1. Support the engine with a jack and wood block under the oil pan.
  2. Remove the ground cable (A) and the side engine mount bracket (B)

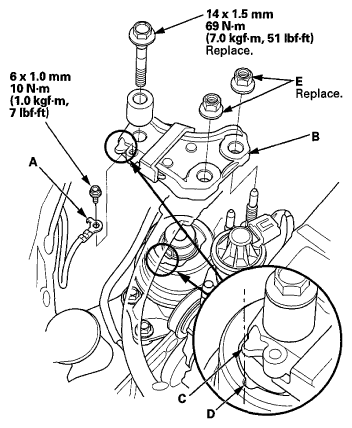

    Fig 1: Aligning Projection With Mark When Install Bracket With Torque Specifications
    G06949334Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the side engine mount bracket with the new bolt.
    NOTE: Make sure to align the projection (C) with the mark (D) when you install the bracket as shown in the illustration.
  4. Loosely install the new side engine mount/bracket assembly mounting nuts (E), and install the ground cable.
  5. Remove the jack and wood block from under the oil pan.
  6. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  7. Loosen the transmission mount bracket mounting bolts (A) and nuts (B).

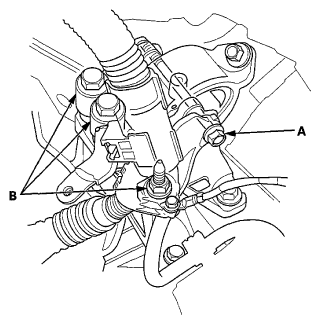

    Fig 2: Locating Transmission Mount Bracket Mounting Bolts And Nuts (M/T Model)
    G06949335Courtesy of AMERICAN HONDA MOTOR CO., INC.

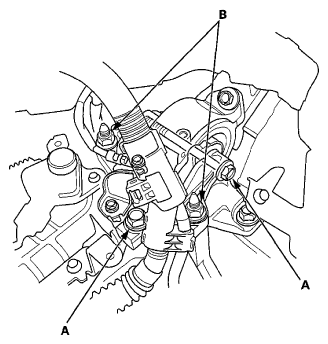

    Fig 3: Locating Transmission Mount Bracket Mounting Bolts And Nuts (CVT Model)
    G06949336Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Raise the vehicle on the lift.
  9. Loosen the torque rod mounting bolt (A) and nut (B).

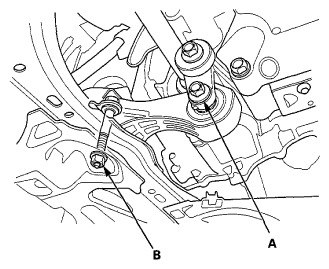

    Fig 4: Locating Torque Rod Mounting Bolt And Nut (M/T Model)
    G06949337Courtesy of AMERICAN HONDA MOTOR CO., INC.

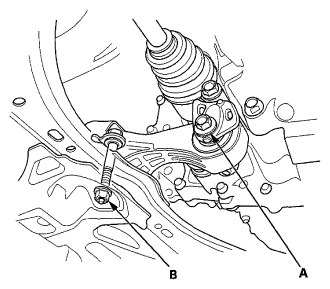

    Fig 5: Locating Torque Rod Mounting Bolt And Nut (CVT Model)
    G06949338Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Lower the vehicle on the lift.
  11. Tighten the side engine mount/bracket assembly mounting nuts.

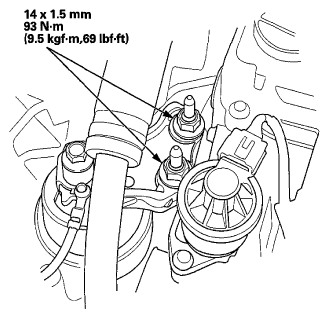

    Fig 6: Identifying Side Engine Mount/Bracket Assembly Mounting Nuts Tighten Torque
    G06949339Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Tighten the transmission mount mounting bolt and nuts in the numbered sequence shown.

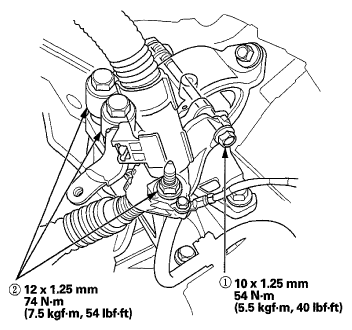

    Fig 7: Transmission Mount Mounting Bolt And Nuts Tightening Sequence (M/T Model) With Torque Specifications
    G06949340Courtesy of AMERICAN HONDA MOTOR CO., INC.

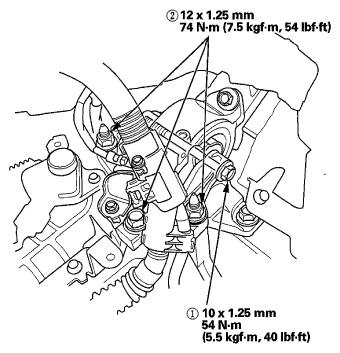

    Fig 8: Transmission Mount Mounting Bolt And Nuts Tightening Sequence (CVT Model) With Torque Specifications
    G06949341Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Raise the vehicle on the lift.
  14. Tighten the torque rod mounting bolt and nut in the numbered sequence shown.

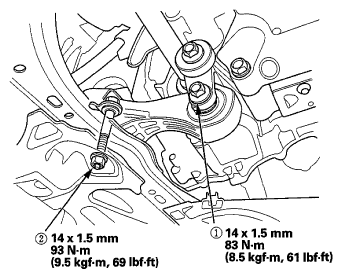

    Fig 9: Rod Mounting Bolt And Nut Tightening Sequence (M/T Model) With Torque Specifications
    G06949342Courtesy of AMERICAN HONDA MOTOR CO., INC.

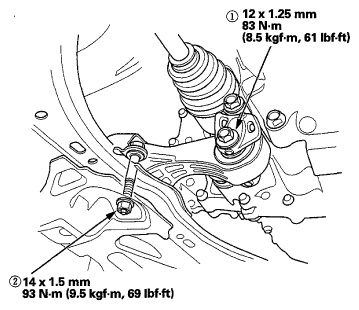

    Fig 10: Rod Mounting Bolt And Nut Tightening Sequence (CVT Model) With Torque Specifications
    G06949343Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Lower the vehicle on the lift.
  16. Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
