System Description
>>
Shift Lock System
>>
Circuit Diagram - PCM CVT Control System
Circuit Diagram - PCM CVT Control System

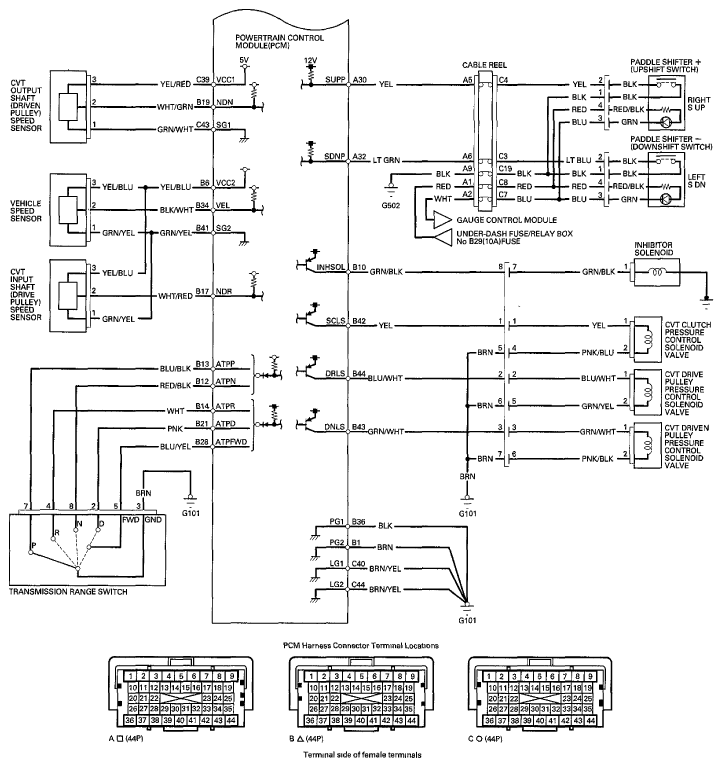

Fig 1: PCM CVT Control System Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

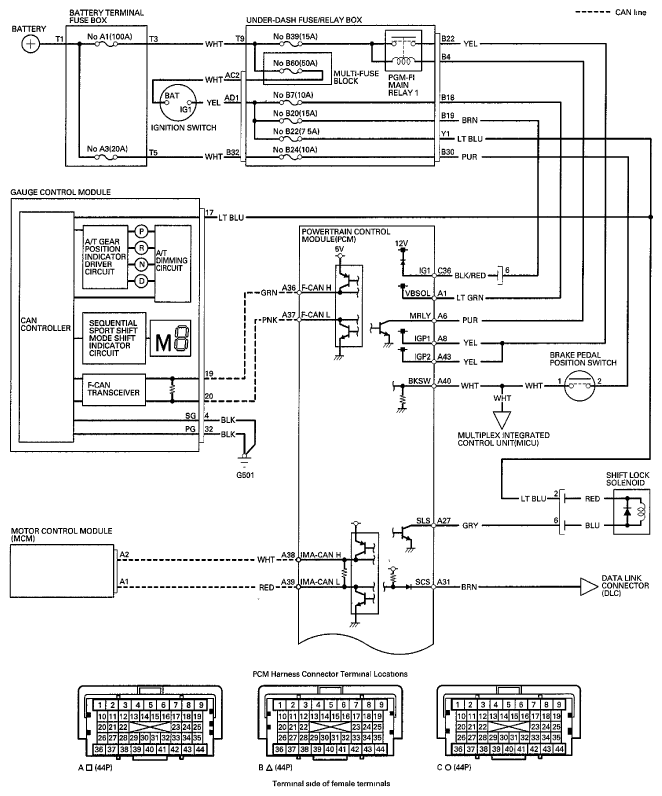

Fig 2: PCM CVT Control System Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
