3-Mode Switch Test/Replacement

  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Remove the five screws and the cover (A).
    Fig 1: Identifying Cover With Screws
    G06954143Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two screws, then remove the 3-Mode switch (A).

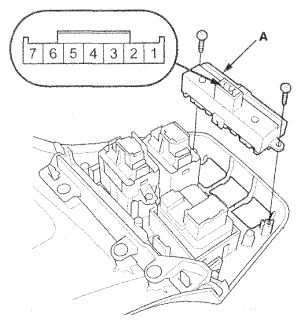

    Fig 2: Identifying 3-Mode Switch 7P Connector Terminals
    G06954144Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Measure the resistance between the 3-Mode switch 7P connector terminals No. 2 and No. 6 in each switch position according to the table.
    RESISTANCE SPECIFICATION

    Position Resistance
    SPORT About 1, 043 Ω
    NORMAL About 33 Ω
    ECON About 363 Ω
  5. If the resistance is not as specified, replace the switch.
  6. Install the switch in the reverse order of removal.
