Countershaft Bearing Replacement

Special Tools Required

• Adjustable Bearing Remover Set 07JAC-PH80000
• Driver Handle, 15 x 135L 07749-0010000
• Attachment, 78 x 80 mm 07NAD-PX40100

1. Remove the countershaft bearing from the torque converter housing using the adjustable bearing remover set.
   Fig 1: Removing Countershaft Bearing From Torque Converter Housing Using Adjustable Bearing Remover Set

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the ATF guide plate (A) into the torque converter housing, then install a new bearing (B) in the direction shown.
   Fig 2: Position Of Installing Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

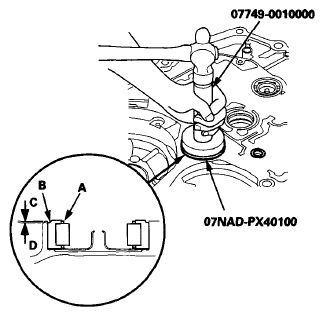

3. Install the bearing (A) in the torque converter housing using the driver handle (15 x 135L) and the attachment (78 x 80 mm); install the bearing outer race notch-cut (B) to a depth (C) of 0-0.03 mm (0-0.001 in) below the torque converter housing surface (D).

Fig 3: Installing Bearing In Torque Converter Housing

Courtesy of AMERICAN HONDA MOTOR CO., INC.
