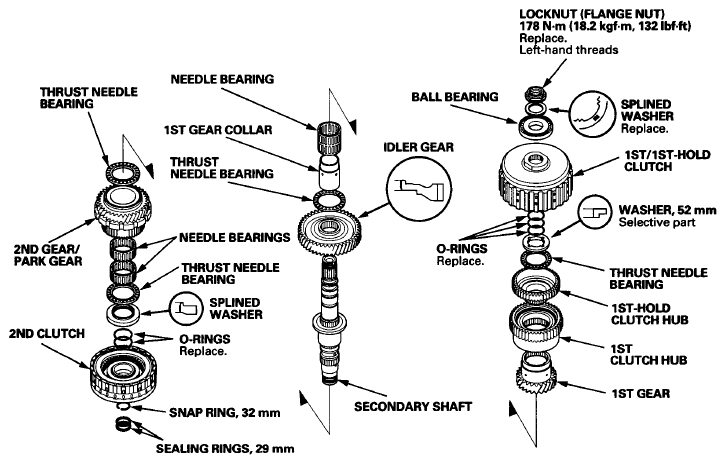

Exploded View
Special Tools Required
Wrench, 40 x 42 mm 07XAA-002010A
NOTE:
Refer to the Exploded View as needed during the following procedure.
- Cut the lock tab (A) of the secondary shaft locknut (B) using a chisel (C).NOTE: Keep all of the chiseled particles out of the secondary shaft.

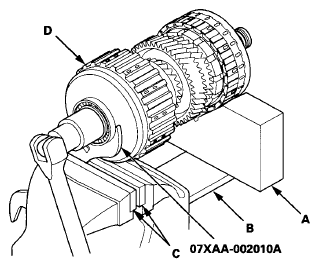

- Place a V-block (A) on the back of a vise (B), and clamp the wrench (40 x 42 mm), in the vise jaws (C).
- Place the secondary shaft on the block, and attach the 1st clutch guide (D) to the wrench (40 x 42 mm). Loosen the locknut, and remove it. Remove any burrs from the splines on the shaft and the splined washer.

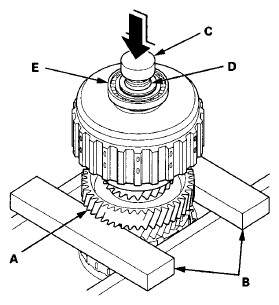

- Place the idler gear (A) on press bases (B), and place a shaft protector (C) between the secondary shaft (D) and a press to prevent damaging the secondary shaft.
- Support the bottom of the secondary shaft with one hand, then press the secondary shaft out of the press-fitted bearing (E). The secondary shaft will drop down after pressing it out of the press-fitted bearing.
- Remove the 1st/1st-hold clutch, the 52 mm washer, the thrust needle bearing, the 1st gear assembly, the needle bearing, the 1st gear collar, the thrust needle bearing, and the idler gear.
- Remove the 32 mm snap ring, and remove the 2nd clutch, the splined washer, the thrust needle bearing, the needle bearings, the 2nd gear/park gear, and the thrust needle bearing.
- Inspect the bearings for galling and rough movement.NOTE: The needle bearing (A) on the 1st gear collar should have only two cavities with no rollers (B); this is function in its normal.
- Check the shaft bearing surfaces for scoring and excessive wear, and check the shaft splines for excessive wear and damage.
- Check the 1st gear axial clearance (see SECONDARY SHAFT 1ST GEAR AXIAL CLEARANCE INSPECTION ), 1st gear one-way clutch (see 1ST GEAR ONE-WAY CLUTCH INSPECTION ), and secondary shaft installation height (see SECONDARY SHAFT INSTALLATION HEIGHT INSPECTION/ADJUSTMENT ).
