Oil Seal Replacement

Special Tools Required

• Driver Handle, 15 x 135L 07749-0010000
• Oil Seal Driver Attachment 07GAD-PG40100
• Oil Seal Driver Attachment, 58 mm 07JAD-PH80101

1. Remove the oil seal from the transmission housing.
   Fig 1: Exploded View Of Oil Seal From Transmission Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the oil seal from the torque converter housing.
   Fig 2: Removing Oil Seal From Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install a new oil seal flush with the transmission housing using the driver handle (15 x 135L) and the oil seal driver attachment.

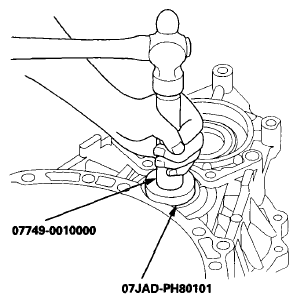

   Fig 3: Installing Oil Seal Flush In Transmission Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install a new oil seal into the torque converter housing using the driver handle (15 x 135L) and the oil seal driver attachment (58 mm).

Fig 4: Installing Oil Seal In Torque Converter Housing

Courtesy of AMERICAN HONDA MOTOR CO., INC.
