Under-floor TWC Removal/Installation

  1. Raise the vehicle on a lift.
  2. Remove the under-floor TWC (A).

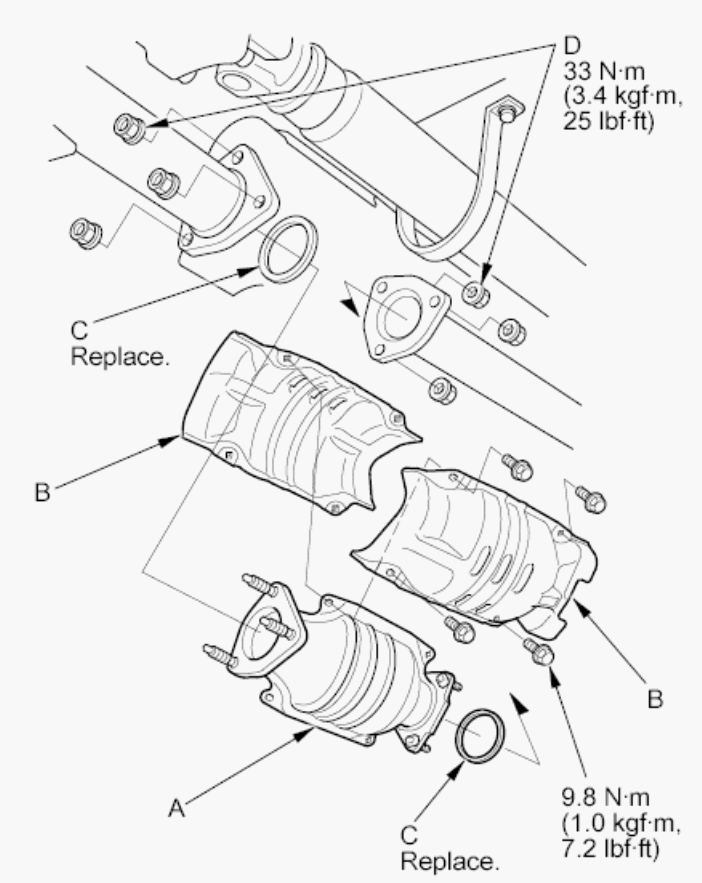

    Fig 1: Under-Floor TWC, Bracket And Nuts With Torque Specifications
    G00509366Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the converter cover (B).
  4. Install the parts in the reverse order of removal with new gaskets (C) and new self-locking nuts (D).
