Glove Box Damper Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. While holding the glove box, remove the glove box stop on each side (see step 1 on DASHBOARD CENTER LOWER COVER DISASSEMBLY/REASSEMBLY ).
2. Disconnect the glove box damper from the glove box (see step 2 on DASHBOARD CENTER LOWER COVER DISASSEMBLY/REASSEMBLY ).
3. Remove the bolt, then remove the glove box damper (A).

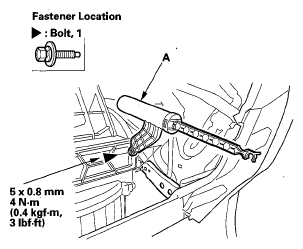

   Fig 1: Glove Box Damper And Bolt With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the glove box damper in the reverse order of removal.
