In-Bed Trunk Lid Latch Replacement

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the in-bed trunk lid.
  1. Open the in-bed trunk lid.
  2. Remove the clips with a clip remover, then remove the in-bed trunk lid inner cover (A).
    Fig 1: Identifying In-Bed Trunk Lid Inner Cover And Clips
    G05968328Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts, then remove the in-bed trunk lid latch (A) from the in-bed trunk lid. Disconnect the in-bed trunk lid latch cable (B) and the actuator connector (C). Take care not to kink the cable.

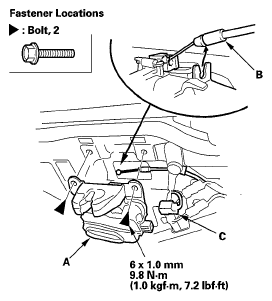

    Fig 2: In-Bed Trunk Lid Latch, Cable And Bolts With Torque Specifications
    G05968329Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the latch in the reverse order of removal, and note these items:
    • Make sure the connector is plugged in properly.
    • Make sure the in-bed trunk lid opens properly and locks securely.
