Regulator Valve Body

The regulator valve body is located on the main valve body. The regulator valve body contains the regulator valve, the cooler check valve, the air check bolts, the lock-up control valve, the servo valve, and the 3rd accumulator.

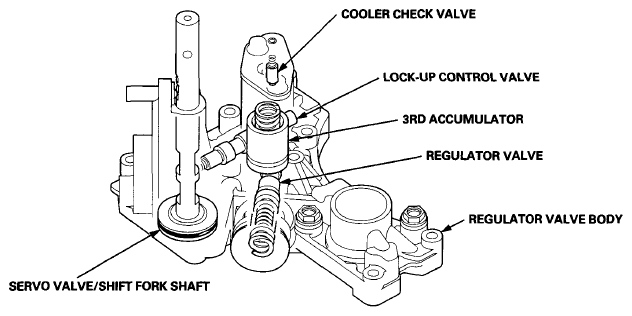

Fig 1: Identifying Regulator Valve Body Consisting Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
