Accumulator Body

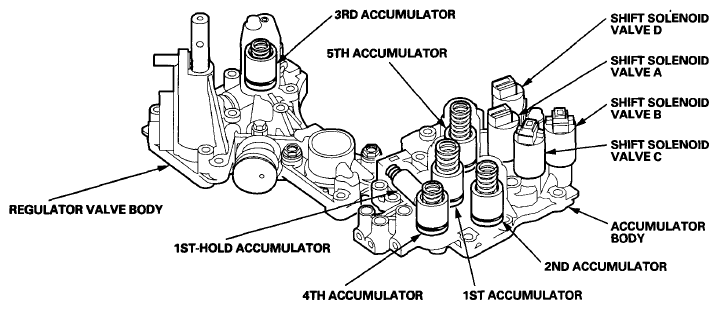

The accumulator body is on the secondary valve body, and contains the 1st, 1st-hold, 2nd, 4th, and 5th accumulators and shift solenoid valves A, B, C, and D. The 3rd accumulator is in the regulator valve body.
