Clear A/T DTCs Procedure

  1. Connect the HDS to the DLC (A) located behind the driver's dashboard lower cover.

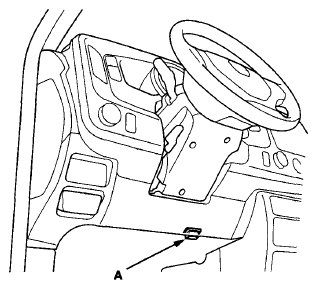

    Fig 1: Identifying Data Link Connector (DLC)
    G06628589Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the ignition switch to ON (II). Make sure the HDS communicates with the PCM. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
  3. Clear the DTC(s) with the HDS.
