ATF Cooler Replacement
- Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT
).
- Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION
).
- Disconnect the ATF cooler hoses (A) from the ATF cooler lines.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

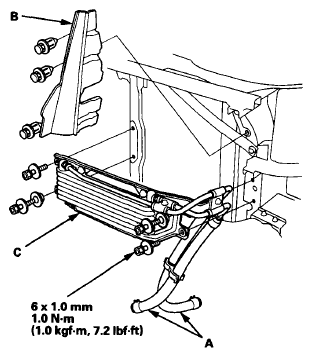

- Remove the splash shield (B), and remove the ATF cooler and cooler hoses assembly (C).
- Install a new ATF cooler and cooler hoses assembly.
- Slide the cooler hoses (A) over the ATF cooler lines (B) until the hose ends (C) contact with the bulge (D), and secure the hoses with the clips (E) at 6-8 mm (0.2- 0.3 in) (F) from the hose end.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Make sure that the hose clamp (G) is installed at the mark(H).
- Install the splash shield on the bulkhead bracket.
- Install the bumper (see FRONT BUMPER REMOVAL/INSTALLATION
).
- Install the bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT
).
