Sealing Bolt Installation
Sealing Bolt Installation
NOTE:
When installing the sealing bolts, always use new washers.

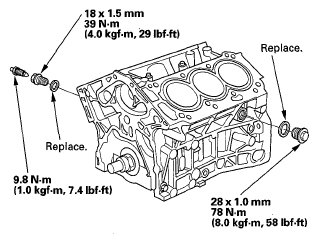

Fig 1: Sealing Bolt And O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
