Power Seat Control Unit Connector for Inputs and Outputs
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
| Connector Index |
|---|
| Power Seat Control Unit Connector A (20P) |
| Power Seat Control Unit Connector B (12P) |

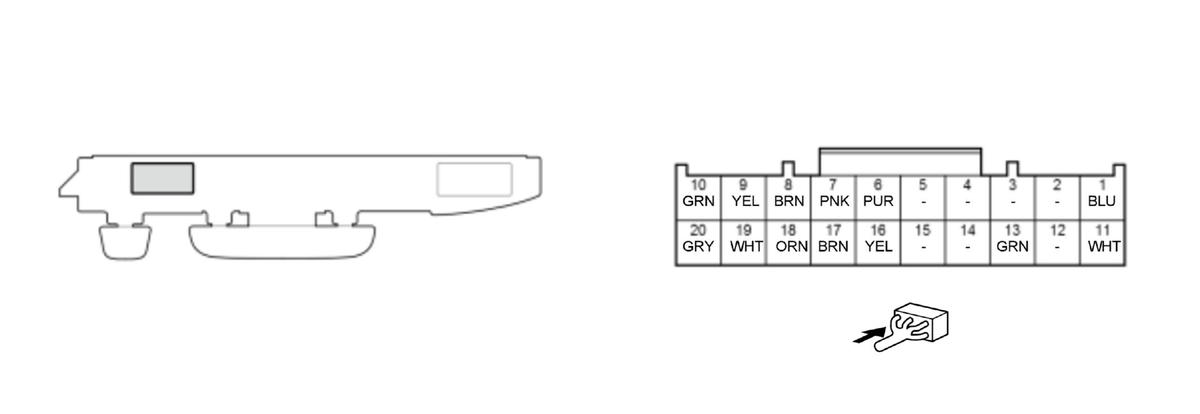

Power Seat Control Unit Connector A (20P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | ATP | Detects ATP signal | Out of P position/mode: about battery voltage With the vehicle in the ON mode and P position/mode: less than 0.2 V |
| 2 | Not used | --- | --- |
| 3 | Not used | --- | --- |
| 4 | Not used | --- | --- |
| 5 | Not used | --- | --- |
| 6 | SVCC | Power source for power seat sensor | With power seat control unit is wakeup mode: about 5 V |
| 7 | TISE | Detects TISE signal | About 0.5-4.5 V (depending on seat position) |
| 8 | SLSE | Detects SLSE signal | About 0.5-4.5 V (depending on seat position) |
| 9 | RHSE | Detects RHSE signal | About 0.5-4.5 V (depending on seat position) |
| 10 | RESE | Detects RESE signal | About 0.5-4.5 V (depending on seat position) |
| 11 | VBU | Power source for power seat control unit | About battery voltage at all times |
| 12 | Not used | --- | --- |
| 13 | IGN | IG1 power source | With the vehicle in the ON or START mode: about battery voltage |
| 14 | Not used | --- | --- |
| 15 | Not used | --- | --- |
| 16 | B-CAN_H | Communication line | --- |
| 17 | B-CAN_L | Communication line | --- |
| 18 | DPMS LOCAL | Communication line | --- |
| 19 | SEG | Ground for power seat sensor | Less than 0.2 V at all times |
| 20 | SG | Ground for power seat control unit | Less than 0.2 V at all times |

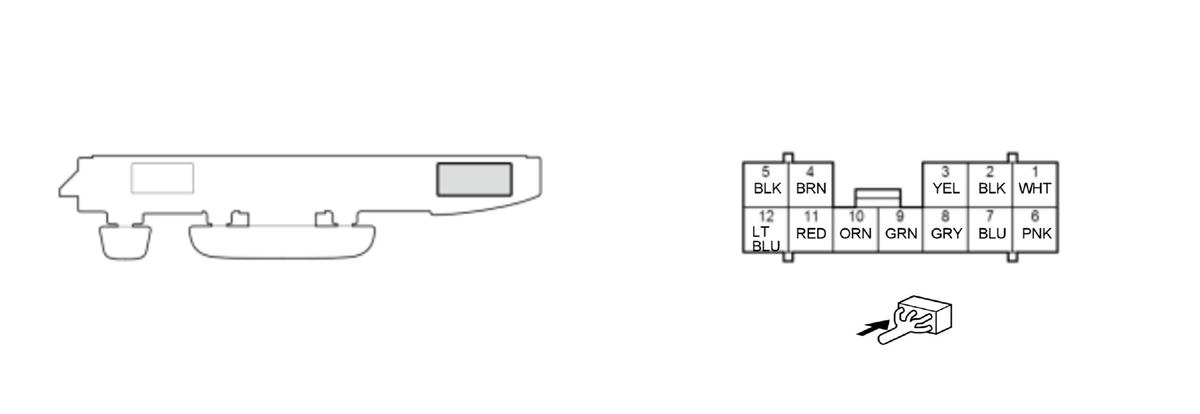

Power Seat Control Unit Connector B (12P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | SLIDE MTR RR | Drives slide motor | With slide motor operation (rear side): about battery voltage |
| 2 | PGND | Ground for power seat control unit | Less than 0.2 V at all times |
| 3 | SLIDE MTR FR | Drives slide motor | With slide motor operation (front side): about battery voltage |
| 4 | HEIGHT DOWN | Drives rear up-down motor | With rear up-down motor operation (down): about battery voltage |
| 5 | PGND | Ground for power seat control unit | Less than 0.2 V at all times |
| 6 | +B P/SEAT 1 | Power source for power seat control unit | About battery voltage at all times |
| 7 | TILT DOWN | Drives front up-down motor | With front up-down motor operation (down): about battery voltage |
| 8 | REC MTR FR | Drives recline motor | With recline motor operation (front side): about battery voltage |
| 9 | HEIGHT UP | Drives rear up-down motor | With rear up-down motor operation (up): about battery voltage |
| 10 | TILT UP | Drives front up-down motor | With front up-down motor operation (up): about battery voltage |
| 11 | REC MTR RR | Drives recline motor | With recline motor operation (rear side): about battery voltage |
| 12 | +B P/SEAT 2 | Power source for power seat control unit | About battery voltage at all times |
