Rear Rocker Arm Oil Pressure Switch Removal/Installation

Disconnect the rear rocker arm oil pressure switch 1P connector (A).

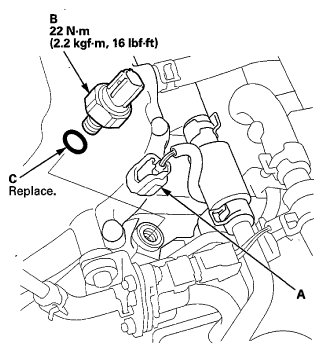

Fig 1: Rear Rocker Arm Oil Pressure Switch And 1P Connector And O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rear rocker arm oil pressure switch (B).
Install the parts in the reverse order of removal with a new O-ring (C).
