Side Engine Mount Removal and Installation: Installation

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the Fuel and Emissions Systems' General Troubleshooting Information for more details (see GENERAL TROUBLESHOOTING INFORMATION ).

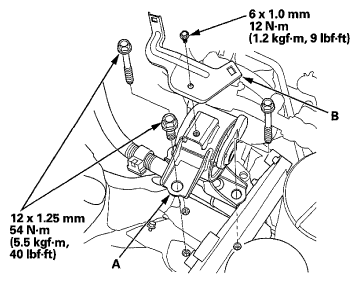

Install the side engine mount (A) and the wire harness bracket (B).

Fig 1: Side Engine Mount And Wire Harness Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

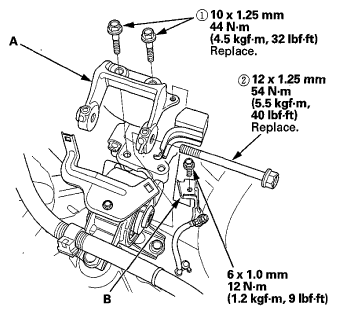

Loosely install the upper half of the side engine mount bracket (A) using new bolts, then install the ground cable bracket (B).

Fig 2: Ground Cable Bracket And Side Engine Mount Bracket Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the jack and the wood block.
Tighten the mounting bolts in the numbered sequence shown.

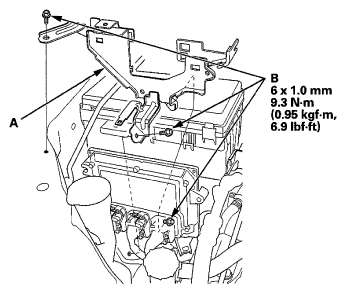

Keihin PCM: Install the PCM bracket (A), then tighten the bolts (B).

Fig 3: PCM Bracket Bolts With Torque Specifications (Keihin PCM)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

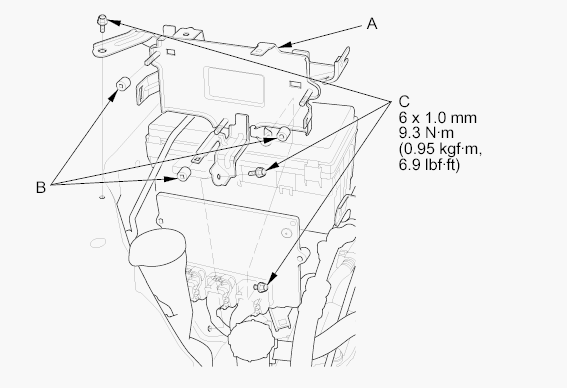

Continental PCM: Install the PCM bracket (A) and the spacer (B), then tighten the bolts (C).

Fig 4: PCM Bracket Bolts With Torque Specifications (Continental PCM)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the PCM (A) and the harness clamp (B).

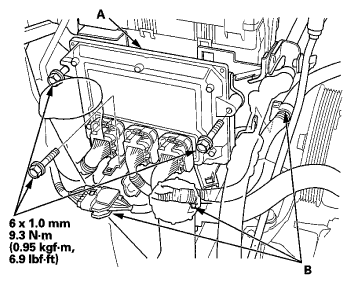

Fig 5: PCM And Harness Clamp With Torque Specifications (Keihin PCM)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

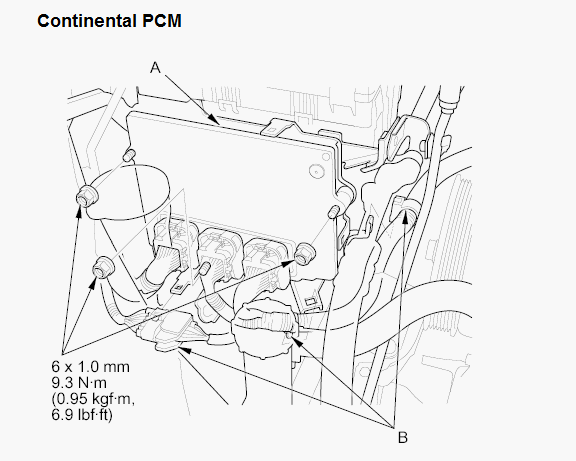

Fig 6: PCM And Harness Clamp With Torque Specifications (Continental PCM)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the power steering reservoir (A) to the clamp.

Fig 7: Identifying Power Steering Reservoir
Courtesy of AMERICAN HONDA MOTOR CO., INC.

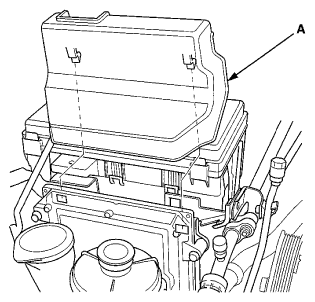

Install the PCM cover (A).

Fig 8: Identifying PCM Cover (Keihin PCM)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Identifying PCM Cover (Continental PCM)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

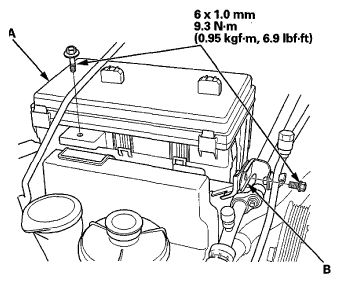

Install the under-hood fuse/relay box (A) and the AC line bracket (B).

Fig 10: Under-Hood Fuse/Relay Box And AC Line Bracket With Torque Specifications
