Front Engine Mount Removal and Installation: Installation

Install the front engine mount (A) using new bolts (B) and the front engine mount bracket (C), then connect the front engine mount actuator connector (D).

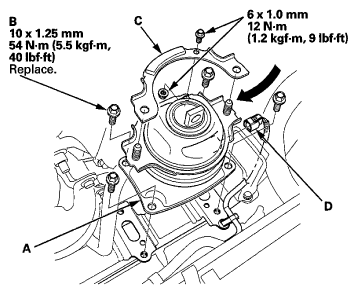

Fig 1: Installing Front Engine Mount Using Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the jack and the wood block.
Install the new front engine mount mounting bolt (A), then install the front engine mount stop (B) using new nuts.

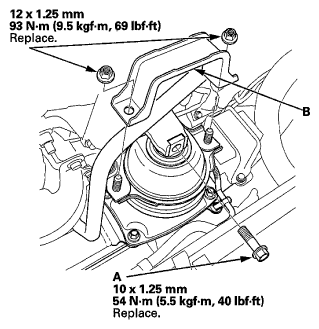

Fig 2: Front Engine Mount Stop Nuts And Front Engine Mount & Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
Install the radiator fan shroud assembly, then install the A/C condenser fan shroud assembly (see INSTALLATION ).
Install the air intake scoop (see step 1 on INTAKE AIR RESONATOR REMOVAL/INSTALLATION ).
