Component Location Index

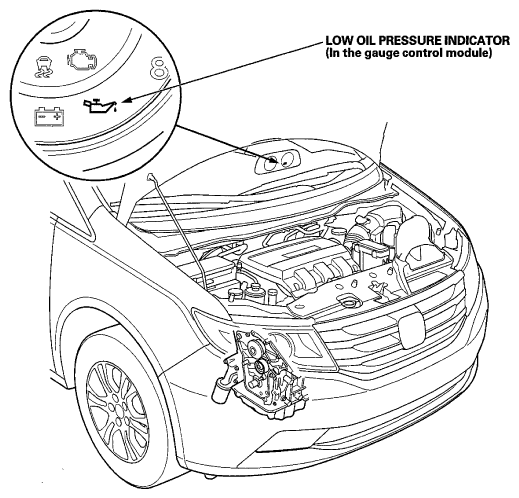

Fig 1: Identifying Low Oil Pressure Indicator (In Gauge Control Module) Replacement Component
G06966502Courtesy of AMERICAN HONDA MOTOR CO., INC.

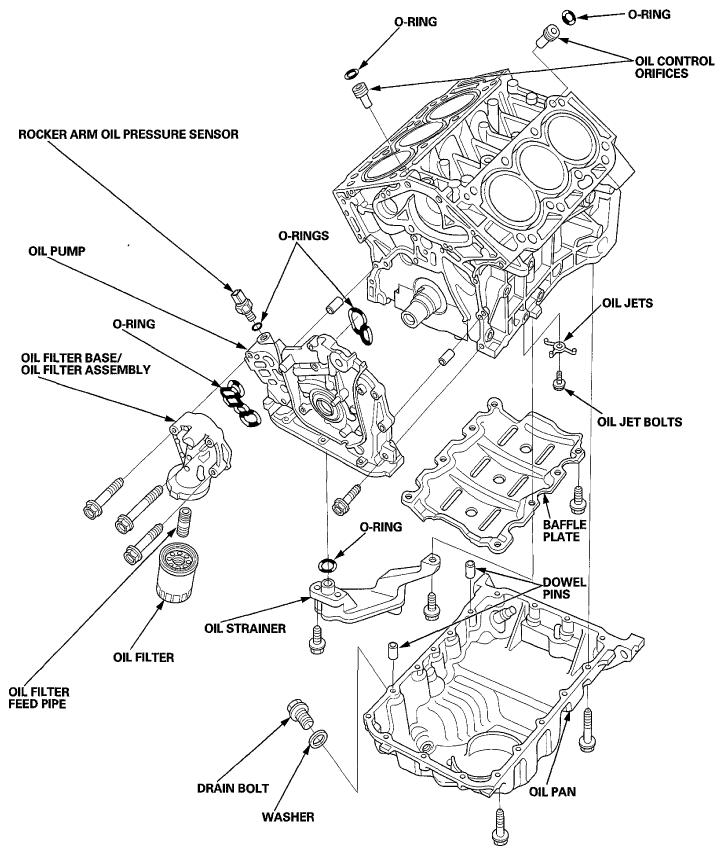

Fig 2: Identifying Engine Lubrication System Replacement Components
G06966503Courtesy of AMERICAN HONDA MOTOR CO., INC.
