Electrical Compass Troubleshooting

NOTE: Check the vehicle battery condition first (see BATTERY TEST ).
  1. Check the No. C11 (7.5 A) fuse in the driver's under-dash fuse/relay box.

    Is the fuse OK?

    YES  -Go to step 2.

    NO  -Replace the fuse, and recheck. If the fuse blows again, check for a short in the No. C11 (7.5 A) fuse circuit.

  2. Check if the electrical compass unit 6P connector is properly connected.

    Is the connector properly connected?

    YES  -Go to step 3.

    NO  -Reconnect the connector, and recheck.

  3. Turn the ignition switch to ON (II).
  4. Measure the voltage between electrical compass unit 6P connector terminal No. 6 and body ground.

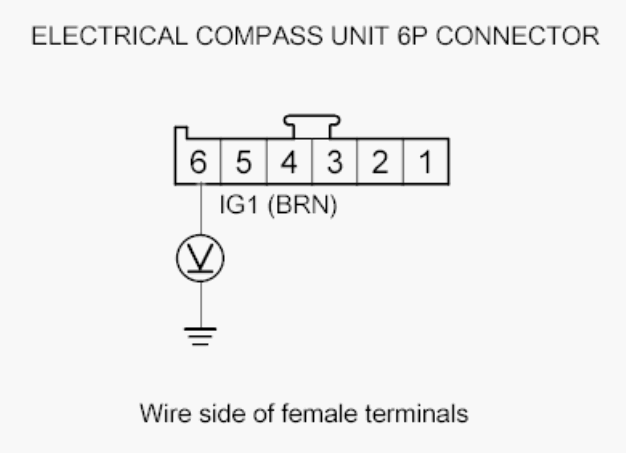

    Fig 1: Measuring Voltage Between Electrical Compass Unit 6P Connector Terminal No. 6 And Body Ground
    G00523814Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage?

    YES  -Go to step 5.

    NO  -Repair an open or high resistance in the wire between the No. C11 (7.5 A) fuse in the driver's under-dash fuse/relay box and the electrical compass unit.

  5. Measure the voltage between electrical compass unit 6P connector terminal No. 5 and body ground.

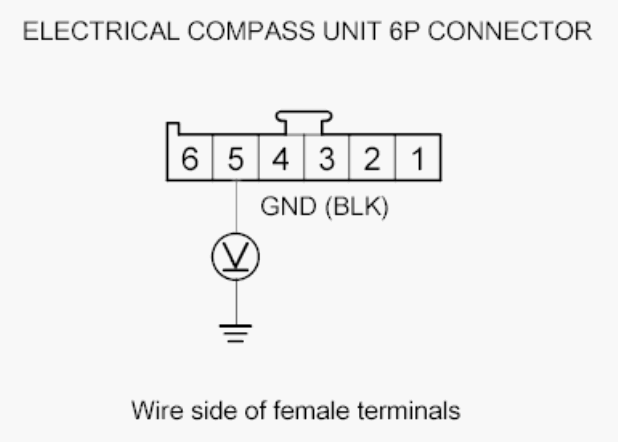

    Fig 2: Measuring Voltage Between Electrical Compass Unit 6P Connector Terminal No. 5 And Body Ground
    G00523815Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there less than 0.2 V?

    YES  -Go to step 6.

    NO  -Repair an open or high resistance in the wire between the electrical compass unit and body ground (G701) (see ROOF WIRE HARNESS (WITH MOONROOF) (J) ).

  6. Turn the ignition switch to LOCK (0).
  7. Disconnect the electrical compass unit 6P connector and audio unit connector B (20P).
  8. Check for continuity between the electrical compass unit 6P connector and body ground according to the table.
    ELECTRICAL COMPASS UNIT CONNECTOR TABLE

    Electrical compass unit connector Wire color
    1 GRY
    2 ORN
    3 BLU
    4 PNK
    Fig 3: Checking Continuity Between Electrical Compass Unit 6P Connector And Body Ground
    G00523816Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair a short to body ground in the wire(s) between the electrical compass unit and the audio unit.

    NO  -Go to step 9.

  9. Check for continuity between the electrical compass unit 6P connector and audio unit connector B (20P) according to the table.
    ELECTRICAL COMPASS UNIT CONNECTOR TABLE

    Electrical compass unit connector Audio unit connector Wire color
    1 B20 GRY
    2 B19 ORN
    3 B10 BLU
    4 B9 PNK
    Fig 4: Checking Continuity Between Electrical Compass Unit 6P Connector And Audio Unit Connector B (20P)
    G00523817Courtesy of AMERICAN HONDA MOTOR CO., INC.

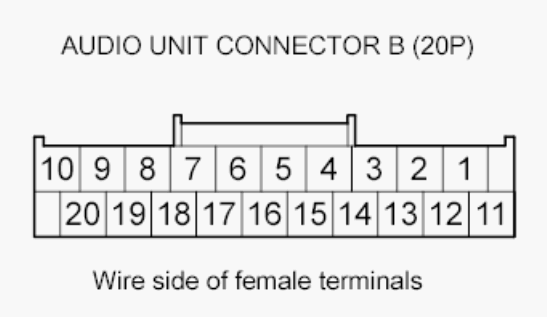

    Fig 5: Checking Continuity Between Electrical Compass Unit 6P Connector And Audio Unit Connector B (20P)
    G00523818Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair an open in the wire(s) between the electrical compass unit and the audio unit.

    NO  -Substitute a known-good electrical compass unit (see Electrical Compass Unit Removal/Installation ), and recheck. If the symptom/indication goes away, replace the original electrical compass unit (see Electrical Compass Unit Removal/Installation ). If the symptom/indication is still present, replace the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION ).
