Special Tools Required

Belt Tension Release Tool Snap-on YA9317* or equivalent, commercially available

*Available through the Honda Tool and Equipment Program 888-424-6857.

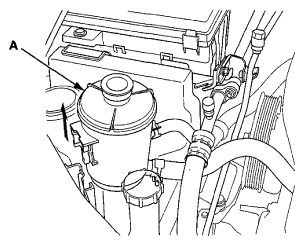

1. Remove the power steering reservoir (A) from the clamp.
   Fig 1: Identifying Power Steering Reservoir

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Move the auto-tensioner (A) using the belt tension release tool (YA9317) in the direction of the arrow to relieve tension from the drive belt, then remove the drive belt.
   Fig 2: Drive Belt Routing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the new drive belt in the reverse order of removal.
