Alternator Removal and Installation: Installation

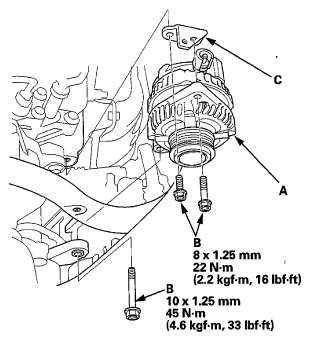

Install the alternator (A), then tighten the mounting bolts (B) and the alternator bracket (C).

Fig 1: Alternator And Alternator Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the push pin to the coolant reservoir (A), then install the power steering reservoir (B) to the clamp.

Fig 2: Identifying Power Steering Reservoir And Coolant Reservoir Push Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.

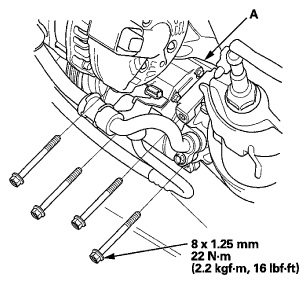

Install the A/C compressor (A).

Fig 3: A/C Compressor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the bolt (A) securing the harness holder.

Fig 4: Harness Holder Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the alternator connector (B), the A/C compressor clutch connector (C), and the positive alternator cable (D) to the alternator. Make sure the crimped side of the ring terminal faces away from the alternator when you connect it.
Install the drive belt (see DRIVE BELT REPLACEMENT ).
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
