Component Location Index

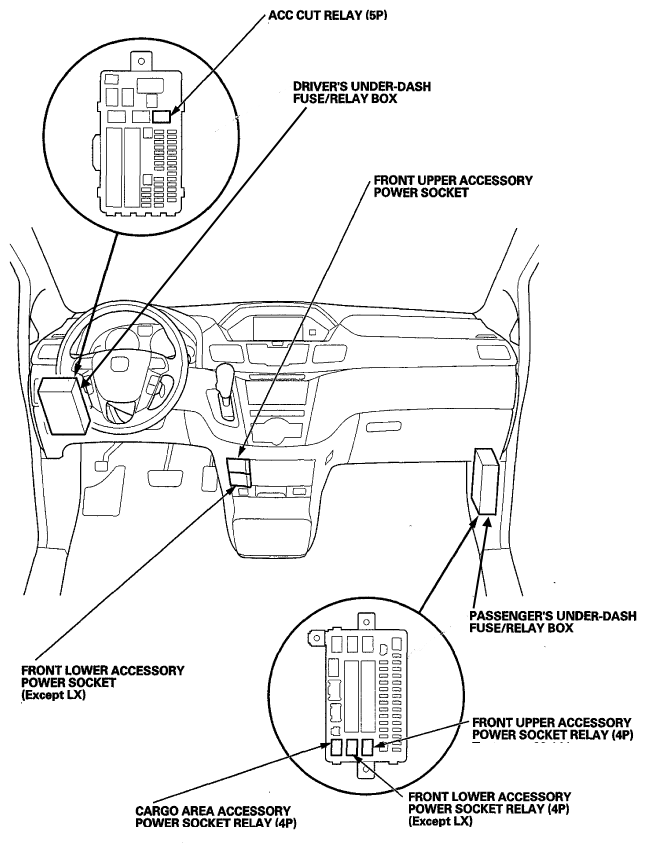

Fig 1: Identifying Accessory Power Sockets System Components (1 Of 2)
G06970025Courtesy of AMERICAN HONDA MOTOR CO., INC.

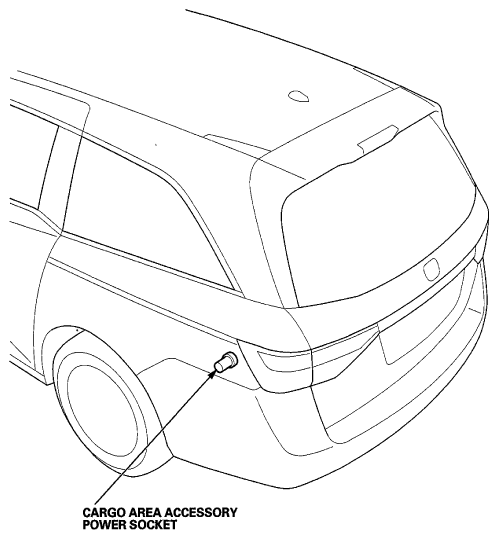

Fig 2: Identifying Accessory Power Sockets System Components (2 Of 2)
G06970026Courtesy of AMERICAN HONDA MOTOR CO., INC.
