VSA (Vehicle Stability Assist) System Components
>>
Component Location Index
Component Location Index

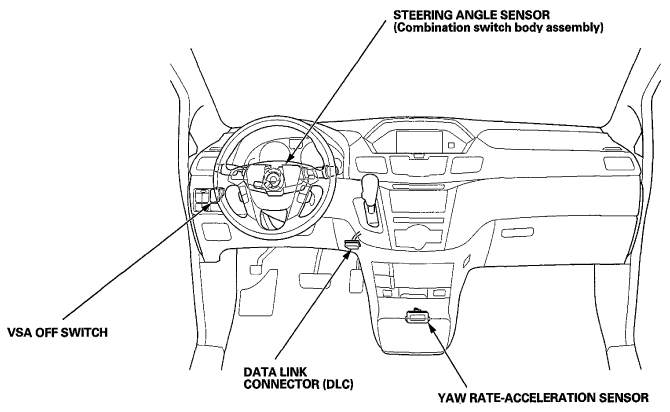

Fig 1: Identifying VSA (Vehicle Stability Assist) System Replacement Components Locations (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

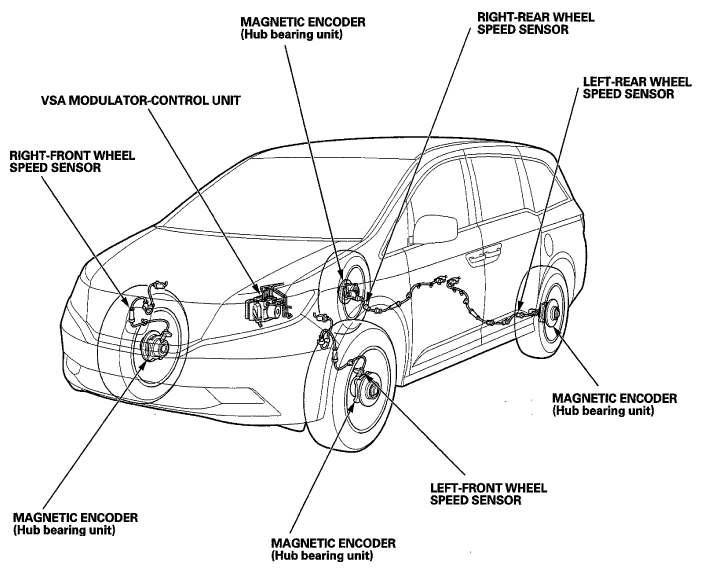

Fig 2: Identifying VSA (Vehicle Stability Assist) System Replacement Components Locations (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
