Sliding Door Power Window Regulator Assembly

This assembly moves the sliding door window in the window run channels, actuates the sliding door window position switch, and pulls the lower roller stopper cable. It contains a power window motor, position plate, and sliding door window position switch.

Sliding Door Window Position Switch (A)-This switch signals the power window control unit that the window is open at 108 mm (4.3 in) or more.

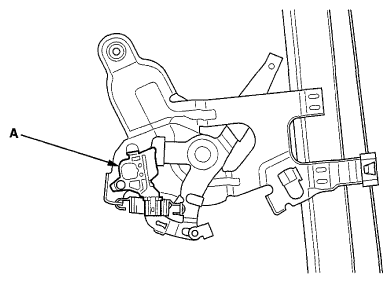

Fig 1: Identifying Sliding Door Window Position Switch

Courtesy of AMERICAN HONDA MOTOR CO., INC.
