HOMELINK Remote Control System
>>
Circuit Diagram
Circuit Diagram

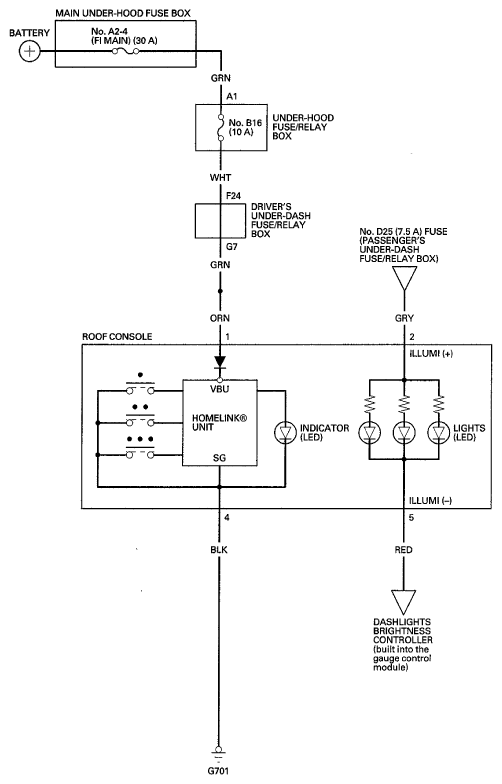

Fig 1: Identifying Homelink Remote Control System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
