Battery Sensor Input Test
NOTE:
Before testing, make sure the battery ground cable is installed correctly, and make sure there is continuity between the battery negative terminal and ground terminal G1.

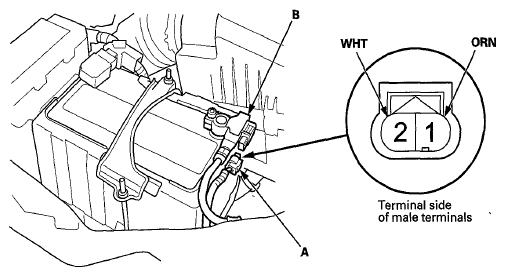

- Disconnect the 2P connector (A) from the battery sensor (B).
- Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 3.
- With the 2P connector still disconnected, do the following input tests.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, replace the battery sensor.2P CONNECTOR TEST REFERENCE CHART
Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained 1 ORN Under all conditions Measure the voltage to ground:
There should be battery voltage.- Blown No. A8 (7.5 A) fuse in the main under-hood fuse box
- An open or high resistance in the wire
2 WHT Disconnect gauge control module 32P connector. Check for continuity between terminal No. 2 and gauge control module 32P connector terminal No. 23: There should be continuity. An open in the UART wire Check for continuity to ground:
There should be no continuity.A short to ground in the UART wire
