Remote Control Switch Test

Remove the sliding door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 8P connector (A) from the sliding door remote control switch.
B: Remote control switch 1

C: Remote control switch 2

D: Remote control switch 3

E: Child lock safety switch

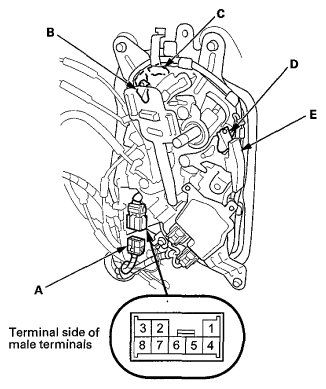

Fig 1: Identifying Sliding Door Remote Control Switch And 8P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

Fig 2: Remote Control Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the power sliding door latch remote control assembly (see SLIDING DOOR LATCH REMOTE CONTROL ASSEMBLY REPLACEMENT ).
