Drive Belt Inspection
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the belt for cracks or damage. If the belt is cracked or damaged, replace it.

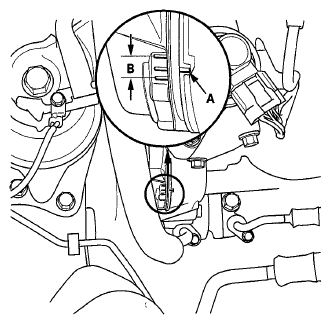

- Check the that position of the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, replace the drive belt.
