Washer Reservoir Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) from the washer motor (B), and disconnect the 2P connector (C) from the washer fluid level switch (D) (Canada models).
Washer Reservoir Capacity:

2.5 L (2.6 US qt): USA models

4.85 L (5.1 US qt): Canada models

NOTE: The illustration shows Canada models.

Fig 1: Identifying 2P Connector, Washer Motor And Washer Fluid Level Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the washer tube(s) (E), then if necessary, remove the washer motor.
NOTE: Fluid may flow out of the opening.
Canada models:
Remove the bolts (A) and the clip (B), then remove the washer reservoir (C).

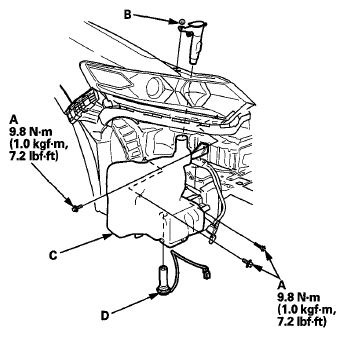

Fig 2: Bolts With Torque Specifications, Clip, Washer Fluid Level Switch And Washer Reservoir
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the washer fluid level switch (D).
USA models:
Remove the bolts (A) and the clip (B), then remove the washer reservoir (C).

Fig 3: Bolts With Torque Specifications, Clip And Washer Reservoir
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the washer reservoir in the reverse order of removal. Fill the reservoir, and check the washer motor operation.
