Maintenance Display

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

The maintenance minder is an important feature of the multi-information display. Based on engine and transmission operating conditions, and accumulated engine revolutions, the Insight's onboard computer (PCM) calculates the remaining engine oil and the CVT fluid life. The system also displays the remaining engine oil life along with the code(s) for other scheduled maintenance items needing service.

Meter:

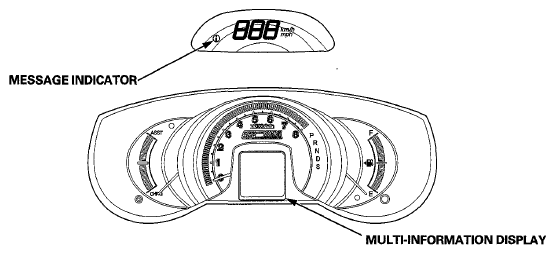

Fig 1: Identifying Multi-Information Display And Message Indicator

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Steering Wheel:

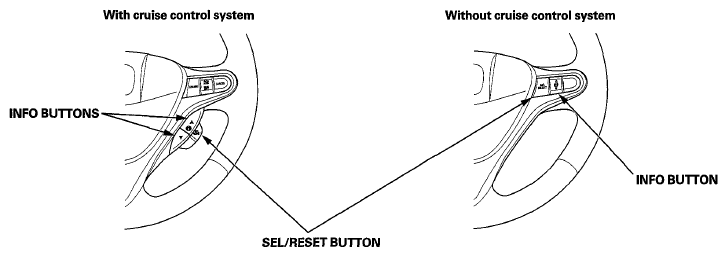

Fig 2: Identifying SEL/RESET Button And Information Button

Courtesy of AMERICAN HONDA MOTOR CO., INC.
