Rocker Arm Assembly Removal

  1. Remove the camshaft sprocket (see CAMSHAFT SPROCKET REMOVAL ).
  2. Loosen the rocker arm adjusting screws (A).
    Fig 1: Identifying Rocker Arm Adjusting Screws
    G08091906Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the camshaft holder bolts. To prevent damaging the camshaft, loosen the bolts in sequence two turns at a time.
    Fig 2: Loosening Sequence Of Camshaft Holder Bolts
    G08091907Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the rocker arm assembly.

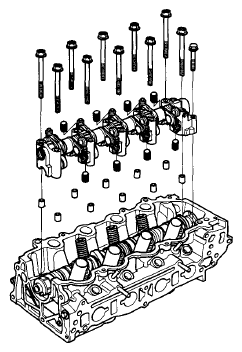

    Fig 3: Identifying Rocker Arm Assembly
    G08091908Courtesy of AMERICAN HONDA MOTOR CO., INC.
