Component Location Index

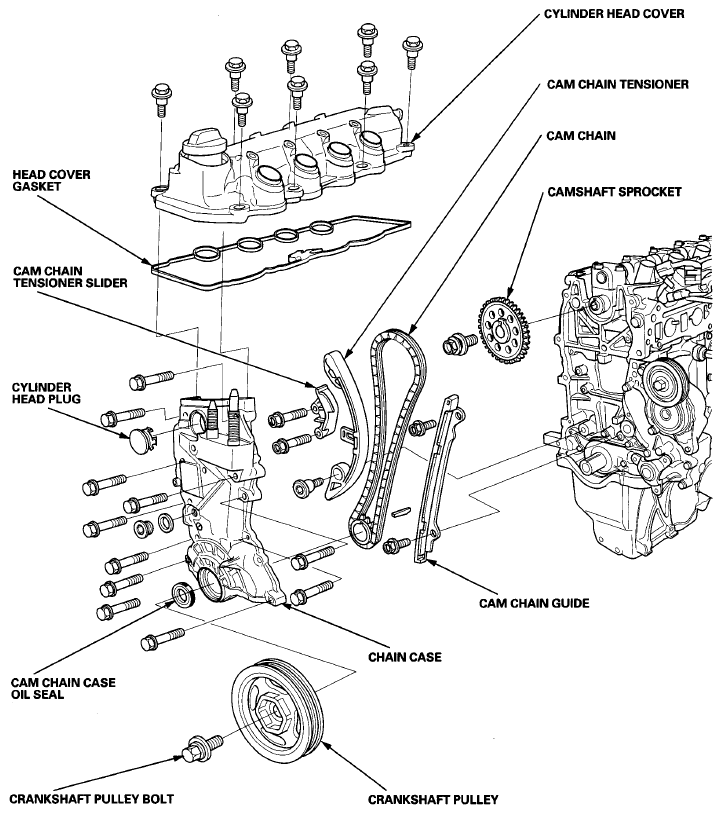

Fig 1: Cylinder Head Components Location (1 Of 3)
G08091832Courtesy of AMERICAN HONDA MOTOR CO., INC.

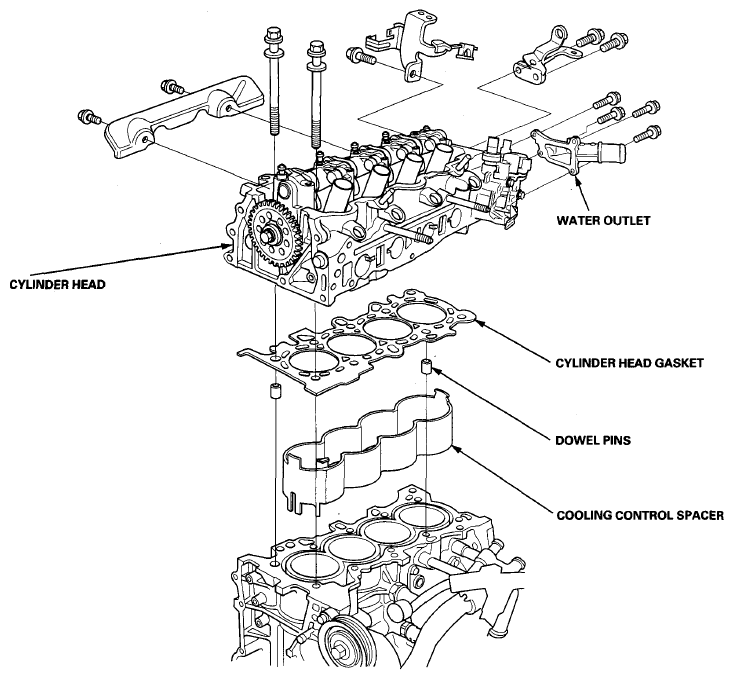

Fig 2: Cylinder Head Components Location (2 Of 3)
G08091833Courtesy of AMERICAN HONDA MOTOR CO., INC.

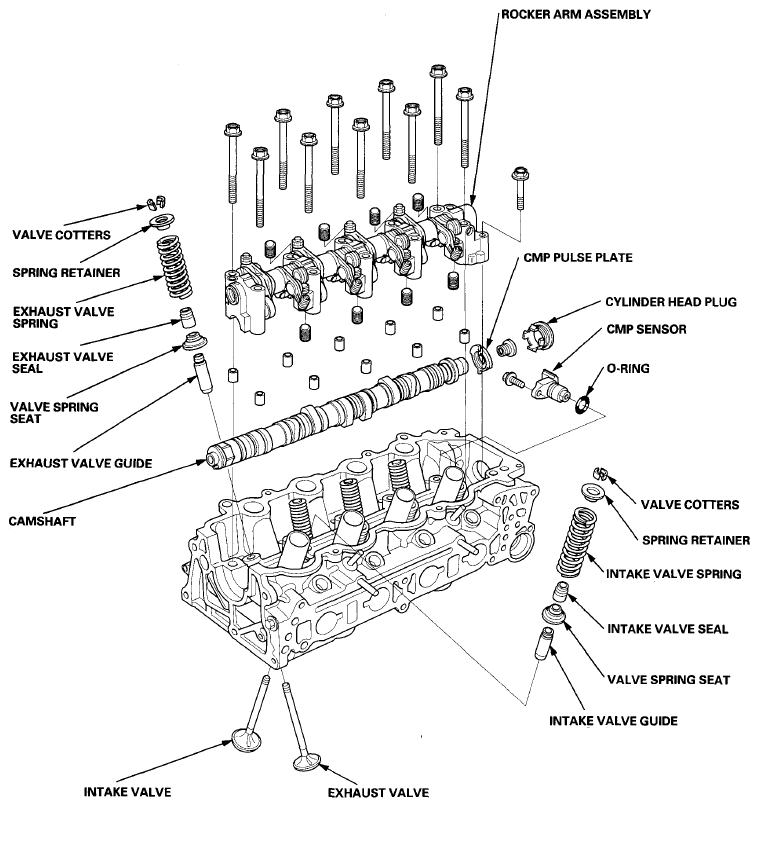

Fig 3: Cylinder Head Components Location (3 Of 3)
G08091834Courtesy of AMERICAN HONDA MOTOR CO., INC.
