Oil Pump Overhaul: Installation

Clean the O-ring groove and the mating surface of the engine block.
Install the oil pump (A) with anew O-ring (B).

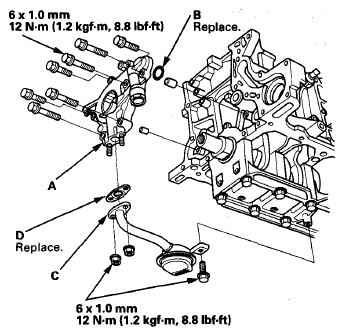

Fig 1: Oil Screen And Oil Pump Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the oil screen (C) with a new gasket (D).
Install the oil pan (see CKP PULSE PLATE REPLACEMENT ).
Support the engine with a jack and a wood block under the oil pan.
Remove the engine support hanger and support eyelet.

Fig 2: Identifying Support Eyelet
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the auto-tensioner (see DRIVE BELT AUTO-TENSIONER REPLACEMENT ).
Install the cam chain (see CAM CHAIN INSTALLATION ).
