Intake Manifold Removal and Installation: Removal

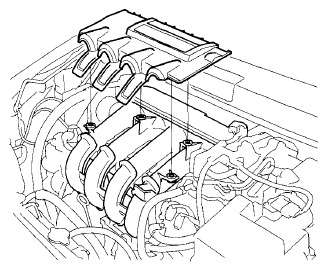

Remove the engine cover.

Fig 1: Identifying Engine Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
Remove the engine wire harness connectors and wire harness clamps from the intake manifold:
- Throttle actuator connector
- MAP sensor connector
- EGR valve connector
- EVAP canister purge valve connector

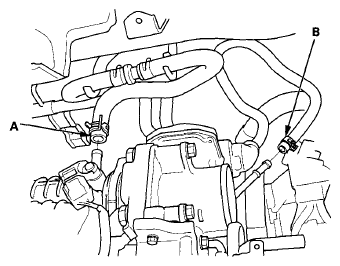

Disconnect the brake booster vacuum hose (A) and the EVAP canister hose (B).

Fig 2: Identifying Brake Booster Vacuum Hose And EVAP Canister Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the EVAP canister purge hose.

Fig 3: Identifying EVAP Canister Purge Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the throttle body without disconnecting the water bypass hoses.

Fig 4: Identifying Throttle Body Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

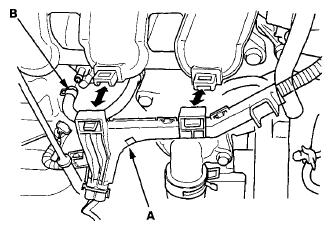

Remove the harness holder (A) from the intake manifold.

Fig 5: Identifying Harness Holder And PCV Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the PCV hose (B).
Remove the dipstick.
Remove the intake manifold bracket mounting bolts.

Fig 6: Identifying Intake Manifold Bracket Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

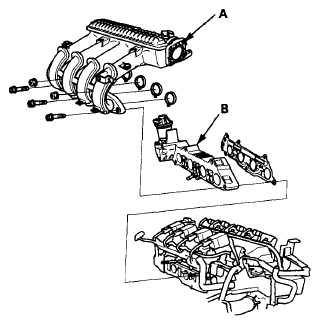

Remove the intake manifold (A).

Fig 7: Identifying Intake Manifold And EGR Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EGR plate (B).
Disassemble the intake manifold.
NOTE: Refer to the Exploded View if needed during this procedure.
