Dashboard Vent Removal/Installation

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
2. Remove the screws, then pull back the dashboard duct (A).

   Inside dashboard vent

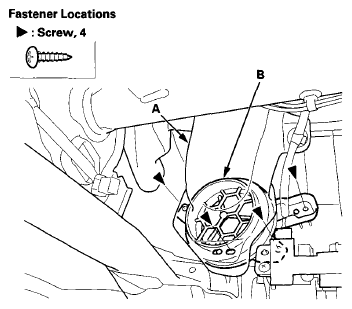

   Fig 1: Identifying Dashboard Duct And Screws (Inside Dashboard Vent)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Outside dashboard vent

   Fig 2: Identifying Dashboard Duct And Screws (Outside Dashboard Vent)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the dashboard vent (B).
4. Install the dashboard vent in the reverse order of removal.
