Center Pocket Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the dashboard or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the humidity/in-car temperature sensor trim (see HUMIDITY/IN-CAR TEMPERATURE SENSOR TRIM REMOVAL/INSTALLATION ).
Remove the center pocket (A).
1. Remove the screws.
2. Pull out the center pocket slightly toward you, and detach the clips (B, C).

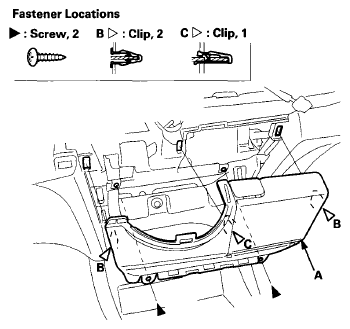

  Fig 1: Identifying Center Pocket And Clips
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the center pocket in the reverse order of removal, and note these items:
  - If the clips are damaged or stress-whitened, replace them with new ones.
  - Push the clips into place securely.
