Center Lower Trim Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the dashboard or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the center lower trim (A).
1. Use the trim tool to pry the gap between the dashboard (B) and the upper side of the center lower trim partially out and release the clips (C, D, E).
2. Pull out the center lower trim slightly toward you, and disconnect the accessory power socket connector (F), and if equipped, the auxiliary jack assembly connector (G).

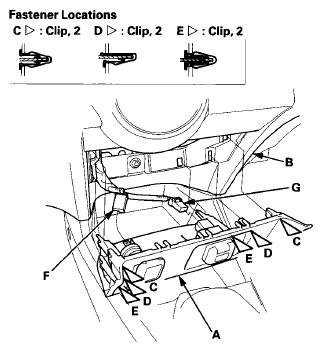

  Fig 1: Identifying Center Lower Trim And Clips
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
- Make sure the connectors are plugged in properly.
