Rear Seat-Back Striker Replacement

Remove these items:
- Cargo area side trim panels, both sides (see TRIM REMOVAL/INSTALLATION - CARGO AREAS )
- IPU module air duct (see IPU MODULE FAN REPLACEMENT )
Left side: Remove the bolts and the nut, then remove the rear seat-back striker (A).

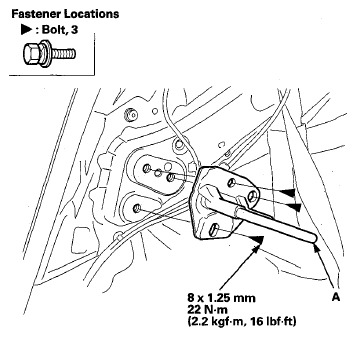

Fig 1: Rear Seat-Back Striker Bolts And Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Right side: Remove the bolts, then remove the rear seat-back striker (A).

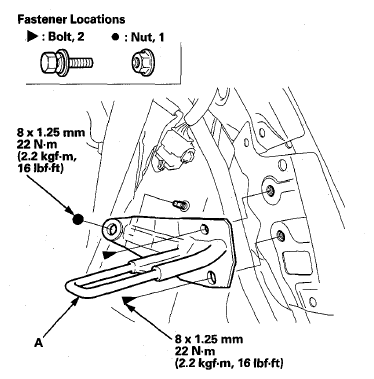

Fig 2: Rear Seat-Back Striker Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the striker in the reverse order of removal, and move the rear seat-back striker (A) up or down until it is centered in the seat-back latch (B).

Fig 3: Moving Rear Seat-Back Striker
Courtesy of AMERICAN HONDA MOTOR CO., INC.
