Rear Seat Removal/Installation: Seat-back

  1. Remove the rear seat cushion.
  2. Remove the center seat belt anchor bolt (A).

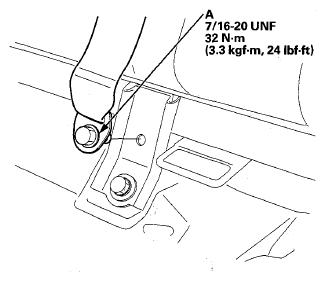

    Fig 1: Center Seat Belt Anchor Bolt With Torque Specifications
    G08094162Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts and the pivot shaft (A) from the seat-back beam (B), then remove the seat-back (C) both sides.

    Left side

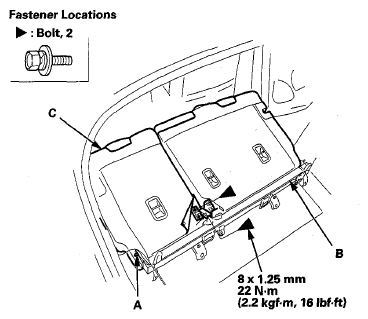

    Fig 2: Seat-Back Beam And Bolts With Torque Specifications (Left Side)
    G08094163Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Right side

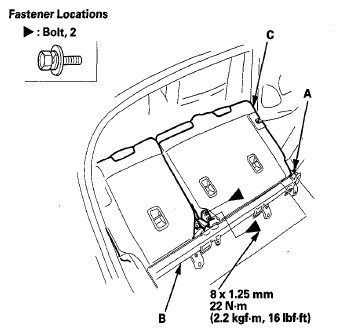

    Fig 3: Seat-Back Beam And Bolts With Torque Specifications (Right Side)
    G08094164Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the seat in the reverse order of removal, and before attaching the rear seat-back, make sure there are no twists or kinks in the seat belts.
