Power Mirror Actuator Test

  1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the power mirror 13P (or 6P) connector (A).

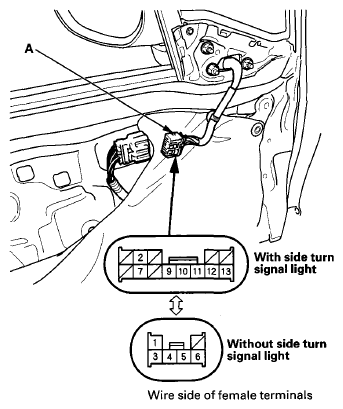

    Fig 1: Identifying Power Mirror 13P (Or 6P) Connector
    G08094844Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check actuator operation by connecting power and ground according to the table.
    Fig 2: Power Mirror Actuator Continuity Chart
    G08094845Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the mirror fails to work properly, replace the power mirror actuator.
