HFL-Navigation Microphone Removal/Installation

  1. Remove the individual map light lens (A) and bolts (B), then disconnect the 3P connector (C).

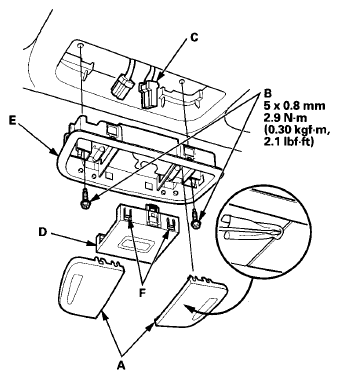

    Fig 1: Individual Map Light Lens, Bolts And 3P Connector With Torque Specifications
    G08095196Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Carefully pry off the microphone (D) from the map light housing (E) while pressing the retaining tabs (F).
  3. Install the HFL-navigation microphone in the reverse order of removal.
