GPS Antenna Removal/Installation

  1. Remove the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).
  2. Remove the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).
  3. Remove the wire harness clips (A), the screws, and the GPS antenna (B).

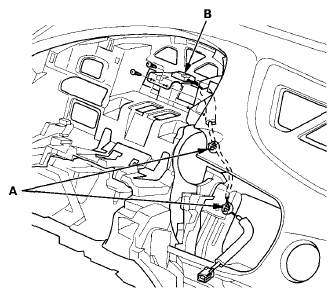

    Fig 1: Identifying Wire Harness Clips, Screws And GPS Antenna
    G08095197Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the GPS antenna in the reverse order of removal.
