Insight Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Navigation System
>>
Circuit Diagram
Circuit Diagram

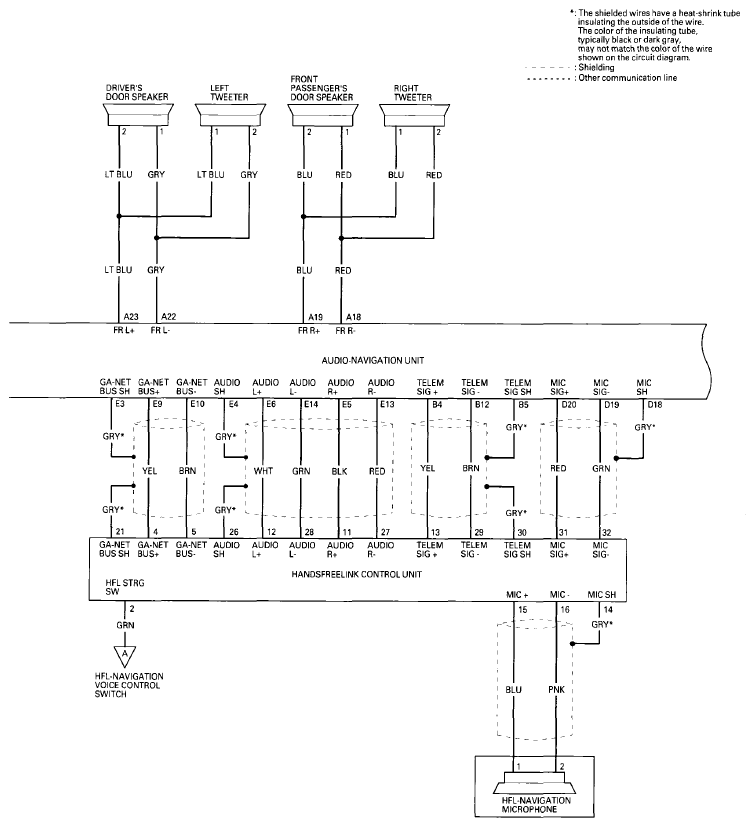

Fig 1: Navigation System Circuit Diagram (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

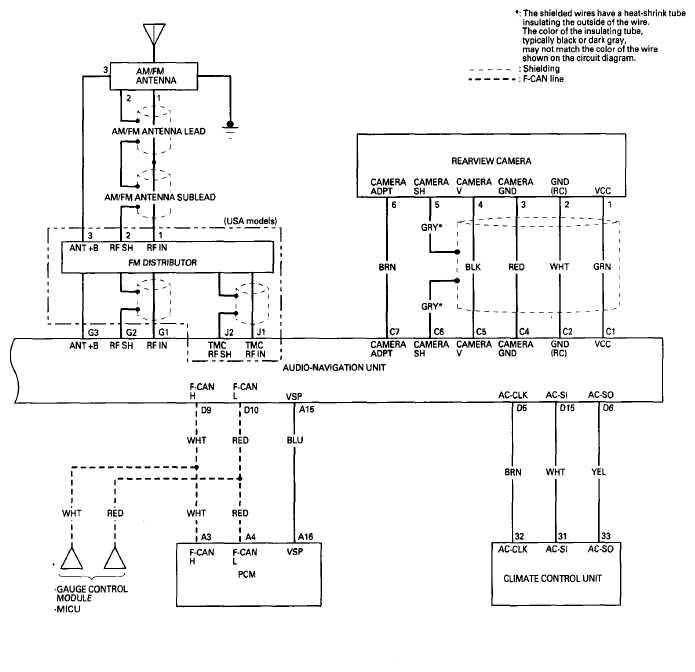

Fig 2: Navigation System Circuit Diagram (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

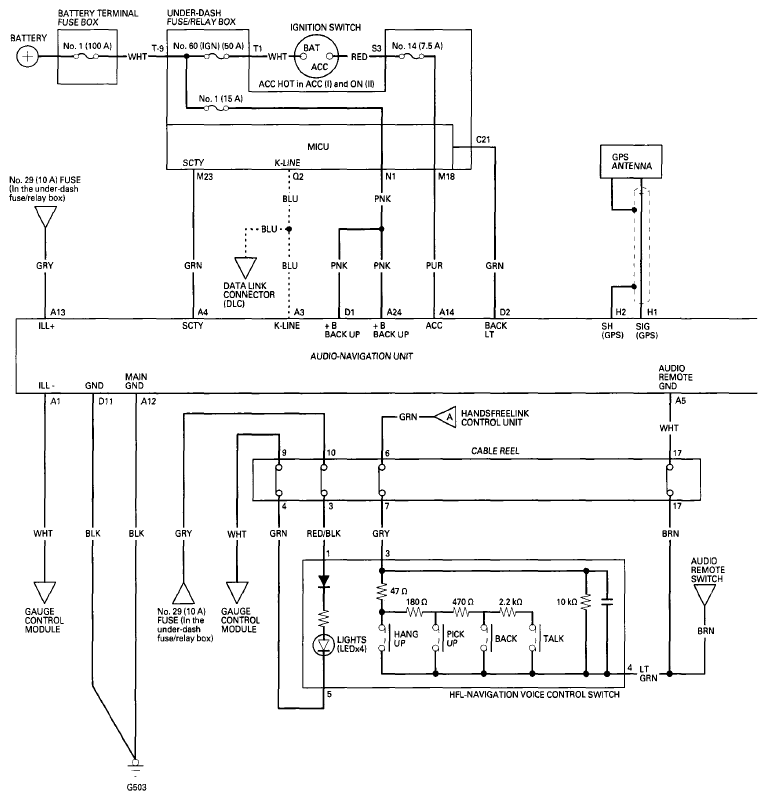

Fig 3: Navigation System Circuit Diagram (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
