System Description
>>
System Diagram
>>
With navigation
With navigation

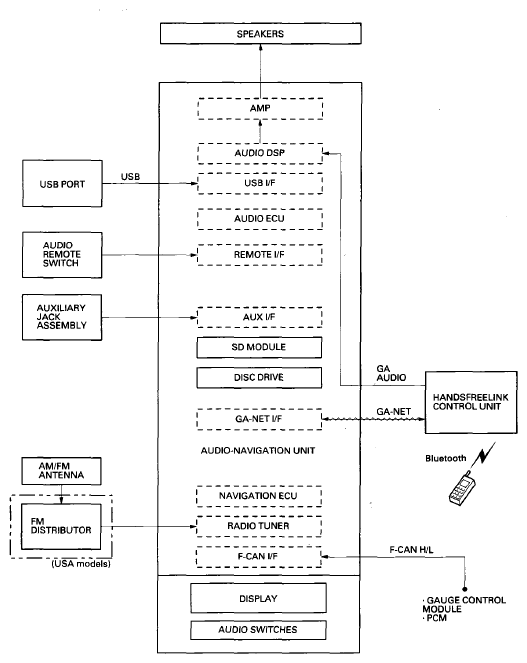

Fig 1: Audio System Diagram - With Navigation
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
