Insight Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Circuit Diagram
>>
With Navigation
With Navigation

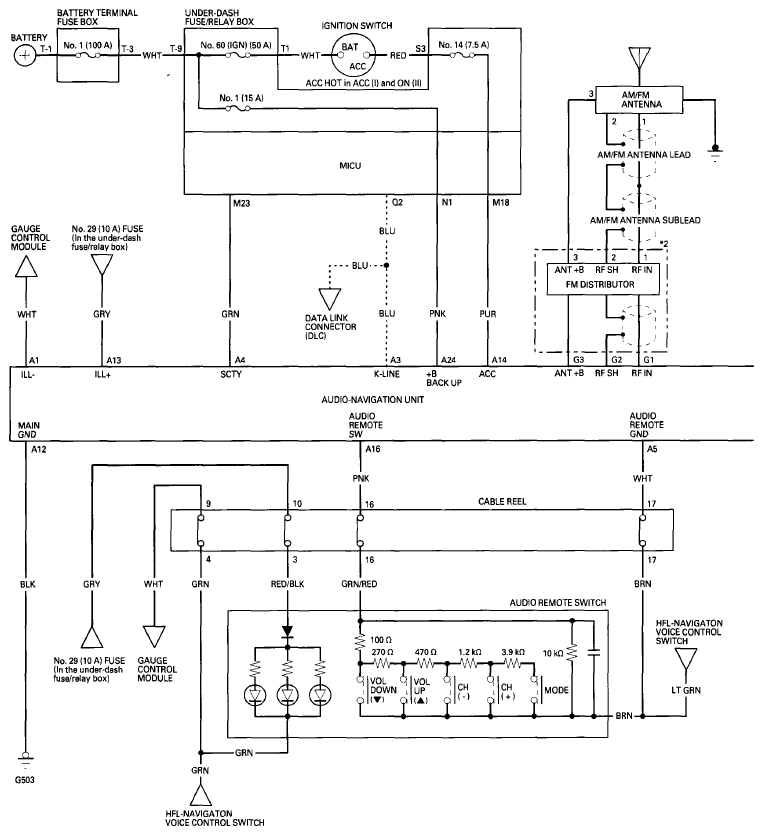

Fig 1: Audio System Circuit Diagram - With Navigation (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

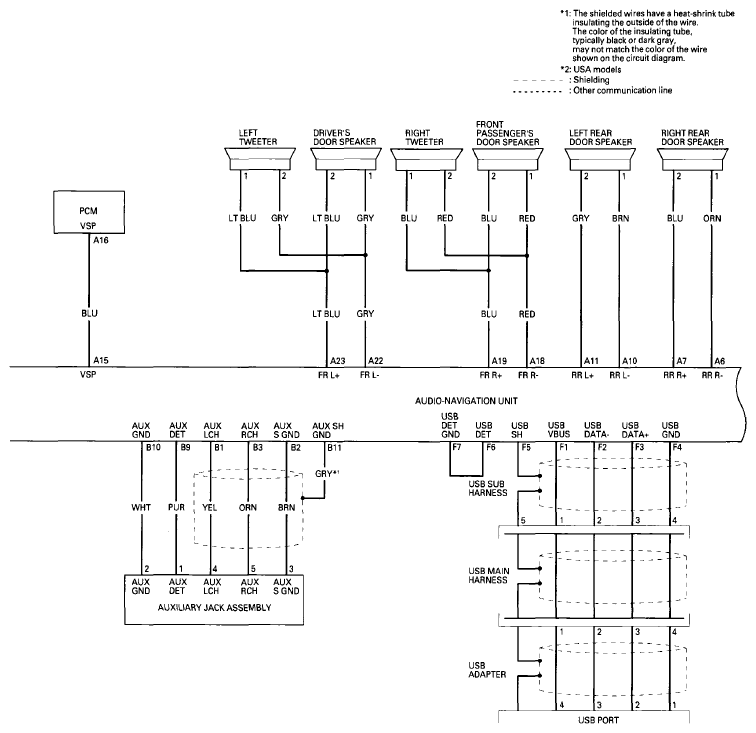

Fig 2: Audio System Circuit Diagram - With Navigation (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

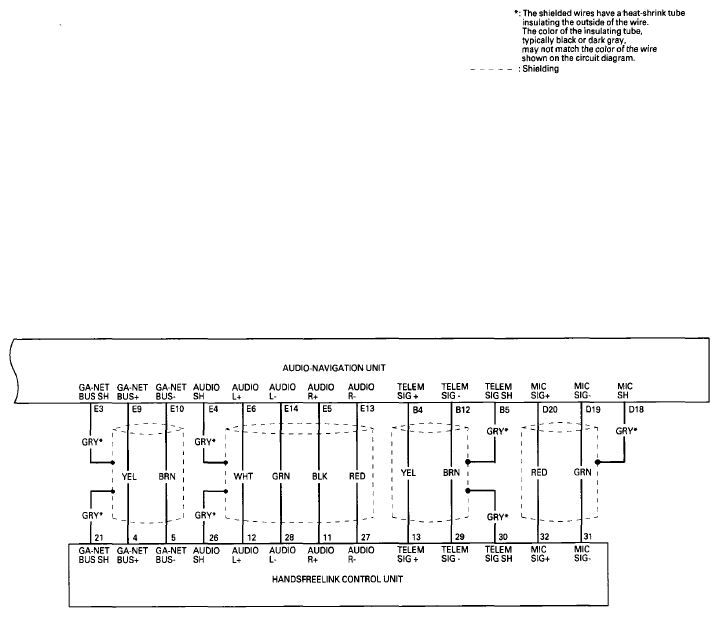

Fig 3: Audio System Circuit Diagram - With Navigation (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
