Auxiliary Jack Assembly Replacement

  1. Remove the center lower trim (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  2. Remove the 5P connector (A) from the auxiliary jack assembly (B).

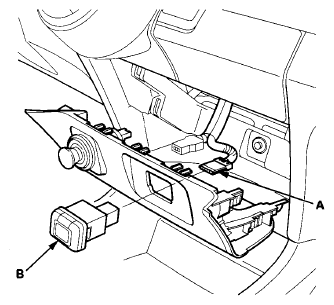

    Fig 1: Identifying 5P Connector And Auxiliary Jack Assembly
    G08095047Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Push out the auxiliary jack assembly from the center lower trim.
  4. Install the auxiliary jack assembly in the reverse order of removal.
