Wiper Arm/Nozzle Adjustment: Notes
NOTE:

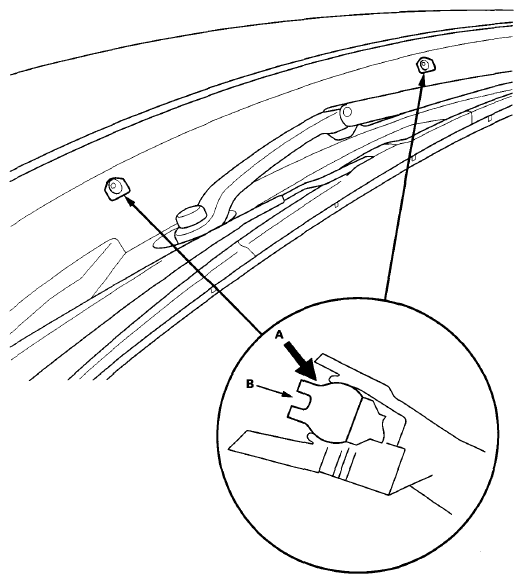

- Adjust the washer nozzles by gently gripping, and then moving, the outside of each nozzle (A).
- Do not insert tools into the nozzle hole (B), as it may cause the washer fluid to spray incorrectly.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
