USB Memory Info

This diagnosis displays the USB device status that is connected to the audio-navigation unit.

If the USB memory device is connected to the USB port, the screen displays the USB memory size, the Product ID, Vender ID, and connection status (Inserted/Not Inserted).

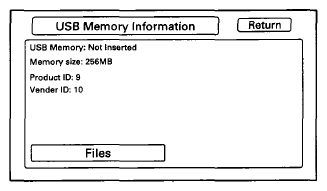

Fig 1: Navigation Display - USB Memory Info

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When you select Files, the USB device file information is displayed.

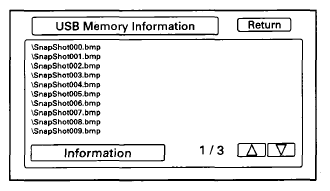

Fig 2: Navigation Display - USB Device File Information

Courtesy of AMERICAN HONDA MOTOR CO., INC.
