Unit Check (Quick Check): Notes

Some of the tests and screens that are displayed under the Unit Check are different from the more detailed checks listed in other areas of this service information.

To start the test, select the item you want to check.

• Display
• Hard Key
• XM (Not available in this model (grayed out))
• Air-con
• Rear Camera
• TMC Status (USA models)
• USB Memory Info
• Navi ECU. HFL
• GPS Antenna
• Radio
• i-MID (Not available in this model (grayed out))

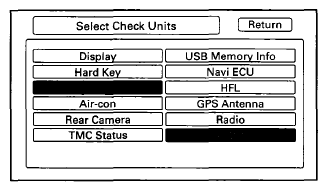

  Fig 1: Navigation Display - Select Check Units

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
